ATMega16 Interfaces To A Discrete 7-Segments Display



Overview

A 7-Segments display commonly found in a typical digital electronics equipment, a temperature controlled switch, a sign board, etc.

It made of segment-shaped of LED with seven light emitting diodes to creates a pattern of numbers, sign, or any characters with an optional dotting point (dp).

Some common anode 7-segments display type with the size of one inch. I use these stuffs for my serial display board.

Technical Data

A 7-Segments display varies in its display size, color and its common configurations. I have seen some available sizes of this type of display, 0.36″, 0.40″, 0.56″, 1″, 2.3″, 3″, 4″ and 5″.

Some Parameters

The size refers to the effective display size. Red in output color is a preferred one’s for most hobbyists. The common configuration are the Common Anode (CA) and the Common Cathode (CC). The designer may select between this two kind of configuration to work with the output of any digital IC or embedded controller.

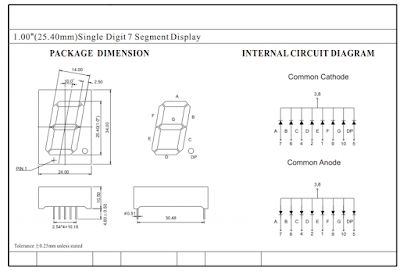

The mechanical diagram and the internal circuit arrangement of a single one inch 7-Segments display.

Some hobbyists make this display by connecting multiple LED to make the segments and dotting point.

Each segment of this one inch size display typically supplied at 3.4V for the 20mA forward current. Some large display size above 2.3 inches have a typical forward current of 25mA with the nominal forward voltage of 9.25V.

Display Representation

A parallel output port of a digital IC or a microcontroller output data to this display. It’s 8-bit including the dotting point. However the dotting point is optional, and it usually bit-wise ORed within the output port.

Typically the programmer maps the segments to a corresponding value in a table. For the common anode display, we have a table below.

Display	g	f	e	d	c	b	a	HEX
0	OFF	ON	ON	ON	ON	ON	ON	0xC0
1	OFF	OFF	OFF	OFF	ON	ON	OFF	0xF9
2	ON	OFF	ON	ON	OFF	ON	ON	0xA4
3	ON	OFF	OFF	ON	ON	ON	ON	0xB0
4	ON	ON	OFF	OFF	ON	ON	OFF	0x99
5	ON	ON	OFF	ON	ON	OFF	ON	0x92
6	ON	ON	ON	ON	ON	OFF	ON	0x82
7	OFF	OFF	OFF	OFF	ON	ON	ON	0xF8
8	ON	ON	ON	ON	ON	ON	ON	0x80
9	ON	ON	OFF	ON	ON	ON	ON	0x90

A minimum common anode type 7-Segments Data Table of decimal numbers between 0 and 9

For a common cathode type display, the 7-Segments data table lists below.

Display	g	f	e	d	c	b	a	HEX
0	OFF	ON	ON	ON	ON	ON	ON	0x3F
1	OFF	OFF	OFF	OFF	ON	ON	OFF	0x06
2	ON	OFF	ON	ON	OFF	ON	ON	0x5B
3	ON	OFF	OFF	ON	ON	ON	ON	0x4F
4	ON	ON	OFF	OFF	ON	ON	OFF	0x66
5	ON	ON	OFF	ON	ON	OFF	ON	0x6D
6	ON	ON	ON	ON	ON	OFF	ON	0x7D
7	OFF	OFF	OFF	OFF	ON	ON	ON	0x07
8	ON	ON	ON	ON	ON	ON	ON	0x7F
9	ON	ON	OFF	ON	ON	ON	ON	0x6F

A minimum common cathode type 7-Segments Data Table of decimal numbers between 0 and 9

It’s not only decimal numbers, we can create some ASCII characters to show on this display – for example A, B, L, etc. Due to a limited content I don’t list them all here. We will see them in the programming section.

Interfacing And Programming

A parallel port output of a digital IC or a microcontroller/microprocessor connects to this display via current limiting resistors. These resistors divide the voltage between the LED segment to around 3.4V (1 inches size display), to get a nominal forward current 20mA.

Here I preferred a one inch common anode red display, I stock in my warehouse.

A single red common anode 7-Segments display – 7SR10012BS I stock.

Microcontroller To 7-Segments Interface

Port C of ATMega16 outputs 7-Segments data to this display via current limiting resistors. With a nominal forward current of 20mA, the voltage drop at each segment is 3.7V. We need to find the an appropriate value of resistor. The onboard devices including the ATMega16 supplies at 5V. So Port C digital output high to external devices must be 5V. Using the voltage divider rule, current limiting resistor is 63 Ohm. However, I only have a 68 Ohm one’s in my stock.

Schematic Diagram Of This Example

Atmel Studio 7 C Programming

Using C in Atmel Studio, we don’t need any hardware library to code within this simple example. It’s nothing more than a digital I/O programming. One important note is creating a 7-Segments data table that have shown in the table above.

Here we use a common anode type display. The display will show a decimal number from 0 to 9 and a character from A to F. The program just display the counting value from 0 to 15, then roll back to 0 and vice versa.

/*
 * discreteSsdCa.c
 *
 * Created: 11/14/2020 6:46:30 PM
 * Author : Admin
 */

#include <avr/io.h>

#define F_CPU 16000000UL
#include <util/delay.h>

int main(void)
{
    //7-Segment data table
    unsigned char cAnode[16]={0xC0,0xF9,0xA4,0xB0,0x99,0x92,0x82,0xF8,0x80,0x90,0x88,
0x83,0xC6,0xA1,0x86,0x8E};
    //counting parameter
    unsigned char cnt=0;
    //Port C As Output
    DDRC=0xFF;
    while (1)
    {
        //Display the 7-Segments Data
        PORTC=cAnode[cnt];
        //Increase the counter
        cnt++;
        //Reset when it reaches 16
        if(cnt>15) cnt=0;
        _delay_ms(1000);
    }
}



On my development board I externally add a one inch 7-Segments display inserted on a bread board.

A program test using development board with some external add-on components.

 Click here to download a zip file of this programming example. Let see this video on YouTube.
